LED Solutions

LED Solutions

ICEIL Stretch Ceiling is India’s only company to engineer lighting solutions through dedicated in-house R&D, exclusively optimized for stretch ceiling applications. Built on 24V DC architecture with aluminium substrates and PMMA optics, ICEIL lighting delivers low power consumption, superior heat dissipation, extended lifespan, minimal lumen depreciation, and uniform illumination achieved through optimal LED pitch distance—ensuring electrical stability, scalability, and long-term performance across architectural and stretch ceiling environments.

Our Certifications

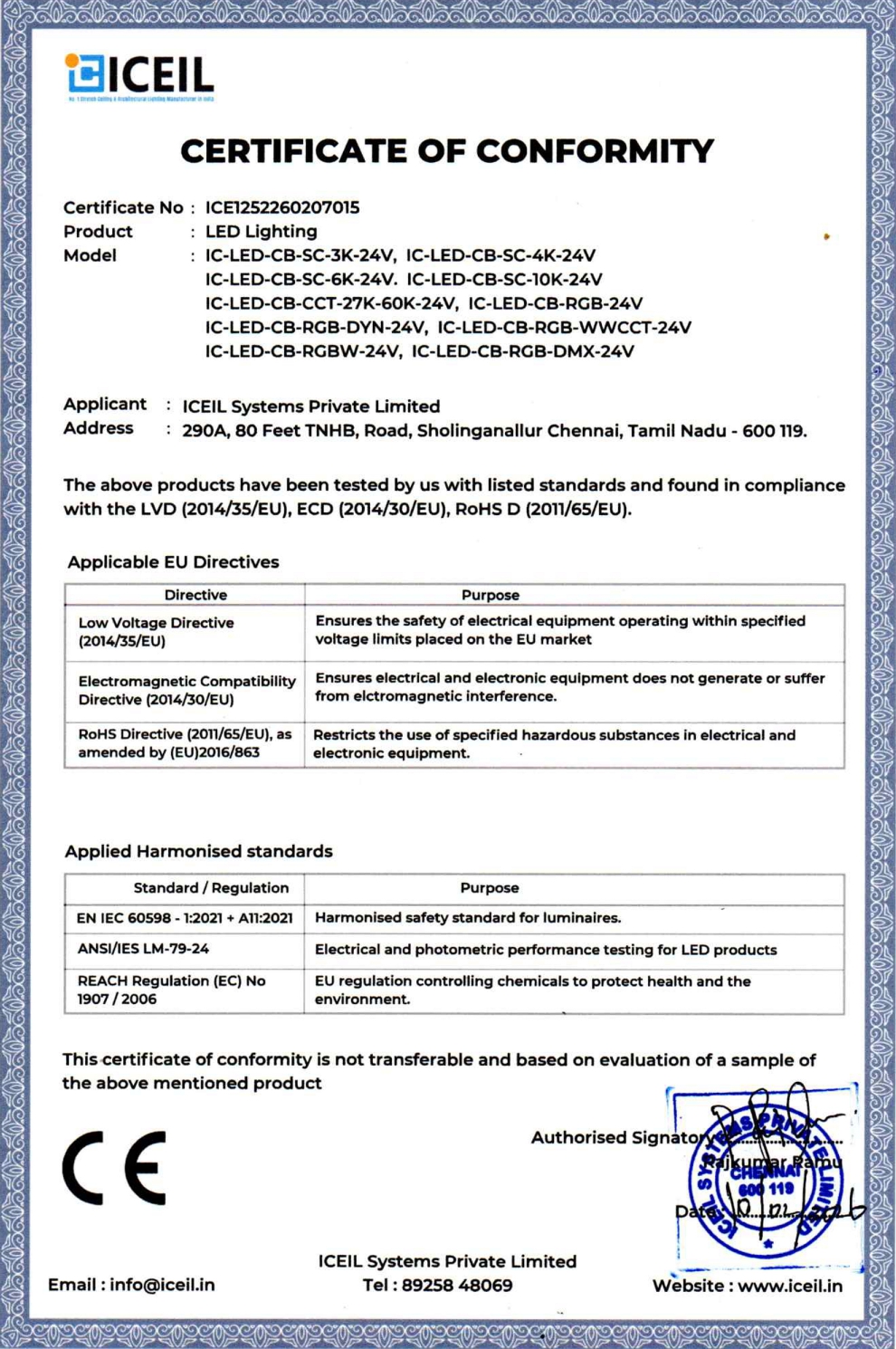

Certificate 1

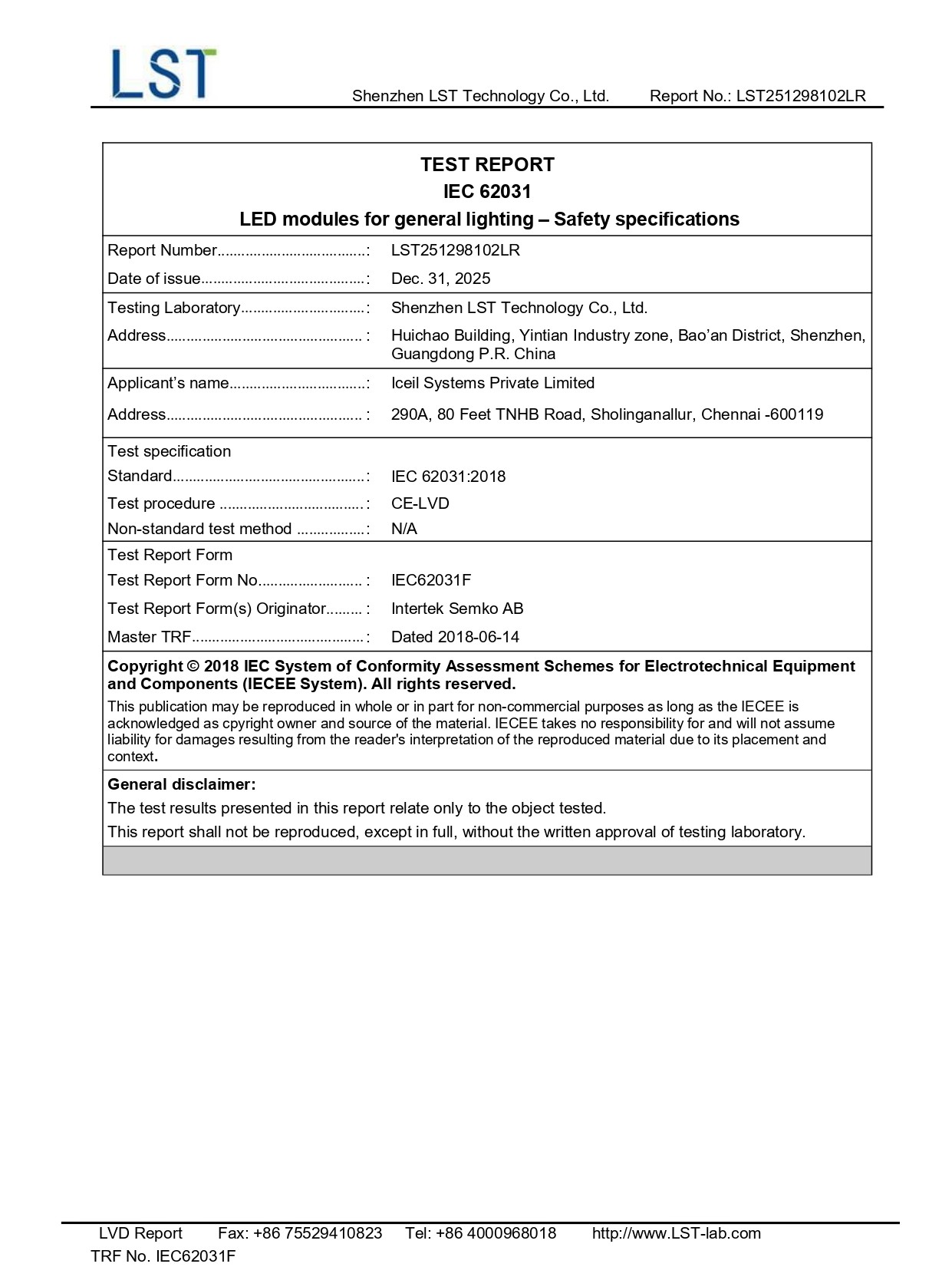

Certificate 2
Certificate 3

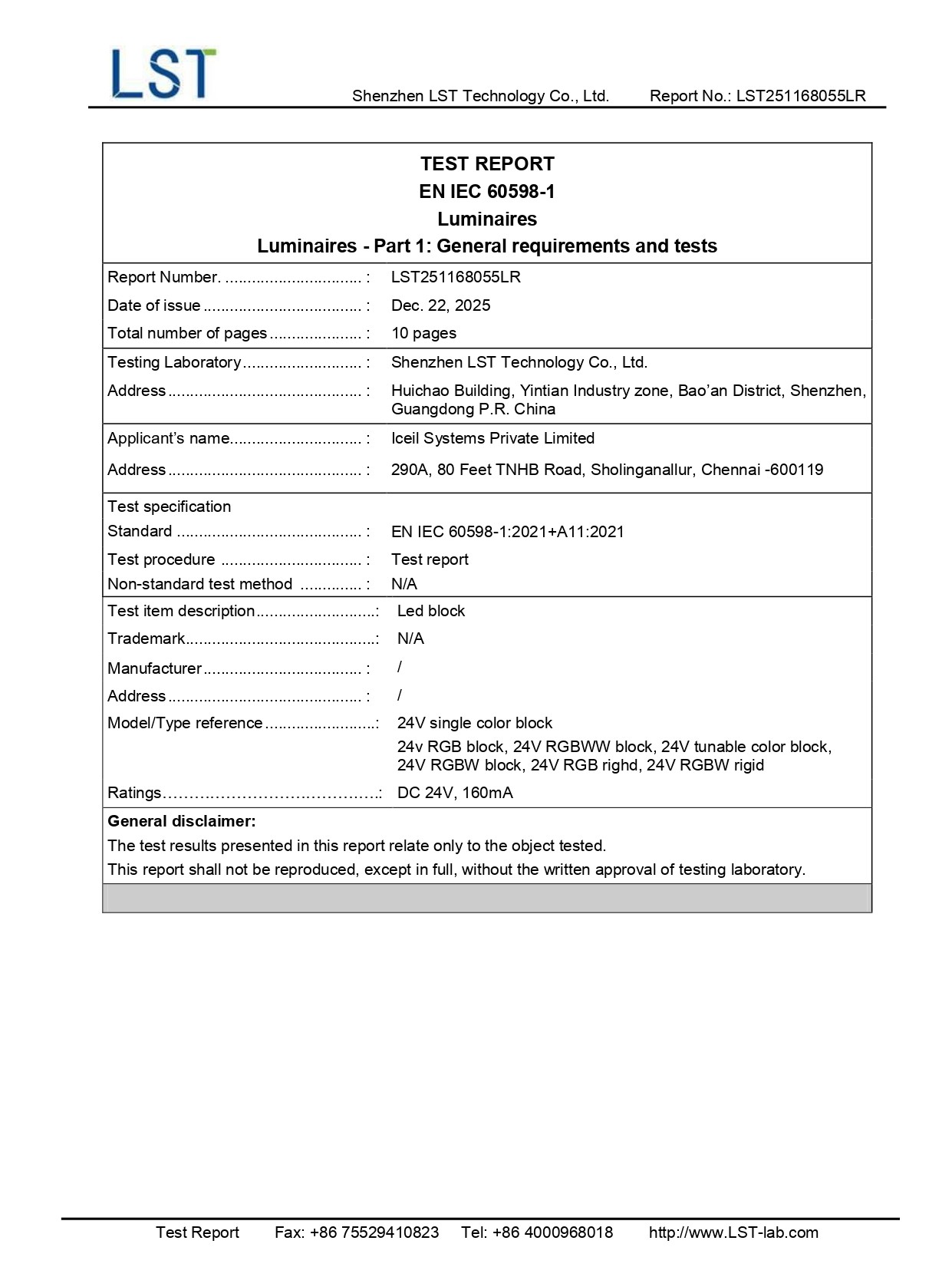

Certificate 4
Certificate 1
Certificate 2
Certificate 3
Certificate 4

1. SINGLE COLOR CHAIN BLOCK

Iceil™ OSRAM 24V LED Module – Single Colour Stretch Ceiling Lighting System

Delivering ambient elegance through precision-engineered illumination. High-performance single-colour LED solution specifically engineered for stretch ceiling applications, combining optical uniformity, thermal stability, and long operational life. Designed for architectural, commercial, and premium residential interiors requiring shadow-free, true-color illumination.

ICEIL SINGLE COLOR CHAIN BLOCK
Specifications
LED Specifications
Chip Brand 3000K / 4000K / 6500K – OSRAM SMD 3030
10000K – Epistar
PCB Size 70 × 70 mm
PCB Type Aluminium PCB Substrate
LEDs per Block 4 LEDs
Power per Block 4 Watts
CRI ≥ 90
Lens PMMA Lens, Ultra-wide 160° beam angle
Power Consumption per Sq.ft 4–6 Watts
Wire Connection Advanced JS2 Connector System
LED Warranty 5 Years / 50,000 Hours
SMPS Specification
Input Voltage Range 100–255V AC (Class I)
Surge Protection 2.5KV / 2KV
Operating Temperature -20°C to +45°C
Body Construction Metal Enclosure
IP20 / IP67 Options
Power Factor (PFC) ≥ 0.98
Warranty IP20 – 3 Years
IP67 – 5 Years
SMPS Brands Iceil / Mean Well / OSRAM
Controllers
Dimming Range 1–100% Smooth Dimming
Control Options Tuya Mobile Application
RF Remote Control
Wireless Glass Touch Panel
Desktop Rotary Controller
DALI / BMS Support DALI DT6 Dimming

2. TUNABLE WHITE CHAIN BLOCK

Iceil™ OSRAM 24V LED Module – Tunable White - Warm

Engineered for advanced stretch ceiling illumination with seamless color temperature control. Stretch Ceiling LED System designed to dynamically transition between warm and cool white spectra, enabling circadian-aligned, mood-responsive, and function-driven lighting environments.

ICEIL TUNABLE WHITE CHAIN BLOCK
Specifications - Tunable White
LED Specifications
Chip Brand OSRAM SMD 3030
Color Temperature Range 2700K – 6000K (Tunable White)
CRI ≥ 90 (High color fidelity for natural, true-to-life illumination)
PCB Type High-performance Aluminium Rigid PCB
PCB Size Standardized module format (optimized for stretch ceiling grids)
LEDs per Block 4 LEDs per module
Lens PMMA Lens, Ultra-wide 160° beam angle
Light Distribution Optimized LED pitch for shadow-free, dotless illumination
Power Consumption per Sq.ft 4–6 Watts (application dependent)
Lighting Compatibility Suitable for both translucent and printed stretch membrane systems
Mounting & Configuration
Mounting System Aluminium rigid PCB ensures superior heat dissipation and mechanical stability
Connection System Advanced JS3 Serial LED Connecting System for reliable, scalable installations
Thermal Management Optimized for continuous operation with extended lumen maintenance
Dimming & Controls
Dimming Range 1–100% smooth dimming (system dependent)
Control Options DALI DT6
Tuya Mobile Application
RF Remote Control
Wireless Glass Touch Panel
Desktop Rotary Controller
Smart Integration Compatibility
Smart Integration Alexa
Google Home
Power Supply (SMPS) Specification
Input Voltage Range 100–305V AC (Class I)
Surge Protection 6KV / 4KV
Operating Temperature -20°C to +45°C
Operating Humidity 20% – 90% RH
Body Construction Metal Enclosure, IP67 Rated
Power Factor (PFC) ≥ 0.98
Power Supply Brands Iceil / Meanwell / OSRAM
Warranty
LED Modules 5 Years or 50,000 Hours (whichever occurs first)
Power Supply (IP67) 5 Years

3. RGB CHAIN BLOCK

Iceil™ RGB 24V Flash Color LED Module System

Dynamic RGB stretch ceiling lighting engineered for advanced visual effects, animation, and immersive ambience. Delivering 16 million dimmable colors with multi-zone control. Powered by the JS4 Serial LED Connecting System.

ICEIL RGB CHAIN BLOCK
Specifications - RGB
LED Specifications
Chip Brand Sanan SMD 3535
Color Output RGB Flash Color
16 Million Dimmable Colors
Up to 50 Color Zones Control
CRI ≥ 80
PCB Type High-performance Aluminium Rigid PCB
LEDs per Block 6 LEDs per module
Lens PMMA Lens, Ultra-wide 160° beam angle
Light Distribution Optimized LED pitch for shadow-free and dot-free illumination
Power Consumption per Sq.ft 6 Watts
Lighting Compatibility Suitable for both translucent and printed stretch membrane systems
Mounting & Configuration
Mounting System Aluminium rigid PCB ensuring superior thermal dissipation and structural stability
Connection System JS4 Serial LED Connecting System for stable signal transmission and scalable RGB installations
Application Scope Decorative stretch ceilings
Architectural feature lighting
Dynamic RGB and animated ceiling effects
Dimming & Controls
Dimming Yes (RGB color and intensity control)
Control Options Tuya Smart App
DALI
RF Remote Control
Wireless Glass Touch Panel
Smart Integration Compatibility
Smart Integration Amazon Alexa
Google Home
Controller Type
Controller Type Iceil™ Tuya RGB LED Controller
Power Supply (SMPS) Specification
Input Voltage Range 100–255V AC (Class I)
Surge Protection 2.5KV / 2KV
Operating Temperature -20°C to +45°C
Operating Humidity 20% – 90% RH
Body Construction Metal Enclosure, IP20 Rated
Power Factor (PFC) ≥ 0.98
Warranty
LED Modules & Power Supply 3 Years or 30,000 Hours (whichever occurs first)

4. RGBWW CCT CHAIN BLOCK

Iceil™ RGBWW CCT 24V Chain Block LED System (5-in-1)

Smart RGB + CCT stretch ceiling lighting engineered for seamless color effects and full-spectrum white control. Advanced RGBWW 5-in-1 system integrating RGB + White + Warm White. 16 million RGB colors, 256-level brightness, and tunable white 2800K to 10000K.

ICEIL RGBWW CCT CHAIN BLOCK
Specifications - RGBWW CCT
LED Specifications
Chip Brand Epistar SMD 3535 (RGBWW)
Color Output RGB Flash Color Effects
Dedicated White (W) and Warm White (WW) Channels
RGB + CCT Control
16 Million Color Combinations
256 Levels of Brightness Control
CCT Range 2800K – 10000K
CRI ≥ 80
PCB Type High-performance Aluminium Rigid PCB
LEDs per Block 12 LEDs per module
Lens PMMA Lens, Ultra-wide 160° beam angle
Light Distribution Optimized LED pitch for uniform, shadow-free and dot-free illumination
Power Consumption per Sq.ft 6 Watts
Lighting Compatibility Suitable for both translucent and printed stretch membrane systems
Mounting & Configuration
Mounting System Aluminium rigid PCB ensuring superior thermal dissipation and long-term mechanical stability
Connection System JS6 Serial LED Connecting System for reliable power and signal continuity across chain blocks
Application Scope Architectural stretch ceilings
Feature lighting and accent ceilings
Premium residential and commercial installations
Dimming & Controls
Dimming Yes (RGB effects, CCT tuning, and intensity control)
Control Options Tuya Smart App
Wireless Glass Touch Panel
RF Remote Control
Smart Integration Compatibility
Smart Integration Amazon Alexa
Google Home
Power Supply (SMPS) Specification
Input Voltage Range 100–305V AC (Class I)
Surge Protection 6KV / 4KV
Operating Temperature -20°C to +45°C
Operating Humidity 20% – 90% RH
Body Construction Metal Enclosure, IP67 Rated
Power Factor (PFC) ≥ 0.98
Warranty
LED Modules, Controller & Power Supply 5 Years or 50,000 Hours (whichever occurs first)

5. SPI RGBW PIXEL CHAIN BLOCK

Iceil™ RGB SPI 24V Smart Dream Color + White LED Module System

IC-based RGB SPI stretch ceiling lighting engineered for high-speed animation, dynamic effects, and immersive ambience. Delivering dynamic dream color effects with dedicated 6000K pure white channel. Powered by TM1814 IC technology with pixel-level control and music-synchronized lighting.

ICEIL SPI RGBW PIXEL CHAIN BLOCK
Specifications - SPI RGBW Pixel
LED Specifications
Chip Brand Epistar SMD 5050 (RGBW)
Color Output RGB SPI Dream Color Effects
Dedicated White Channel – 6000K
16 Million Dimmable Colors
Up to 50 Color Zones Control
CRI ≥ 80
IC Technology TM1814 Integrated SPI Control IC
PCB Type High-performance Aluminium Rigid PCB
LEDs per Block 8 LEDs per module
Lens PMMA Lens, Ultra-wide 160° beam angle
Light Distribution Optimized LED pitch for uniform, shadow-free, and dot-free illumination
Power Consumption per Sq.ft 6 Watts
Lighting Compatibility Suitable for both translucent and printed stretch membrane systems
Mounting & Configuration
Mounting System Aluminium rigid PCB ensuring superior thermal dissipation and long-term mechanical stability
Connection System JS3 Serial LED Connecting System for high-speed SPI data transmission and scalable RGB SPI installations
Special Features Pixel-level color control
Music Sync Mode (sound-responsive lighting effects)
High-speed dynamic animations and gradients
Application Scope Architectural feature stretch ceilings
Experiential and entertainment environments
Premium commercial and residential installations
Dimming & Controls
Dimming Yes (RGB SPI effects, white channel, and intensity control)
Control Options Tuya Smart App
RF Remote Control
Wireless Glass Touch Panel
Smart Integration Compatibility
Smart Integration Amazon Alexa
Google Home
Controller Type
Controller Type Iceil™ SPI Tuya RGB Dream Color Controller
Power Supply (SMPS) Specification
Input Voltage Range 100–305V AC (Class I)
Surge Protection 6KV / 4KV
Operating Temperature -20°C to +45°C
Operating Humidity 20% – 90% RH
Body Construction Metal Enclosure, IP67 Rated
Power Factor (PFC) ≥ 0.98
Warranty
LED Modules, Controller & Power Supply 5 Years or 50,000 Hours (whichever occurs first)

6. DMX RGBWW PIXEL CHAIN BLOCK

Iceil™ DMX RGBWW 24V Dynamic 5-in-1 Rigid Block LED System

DMX-controlled architectural stretch ceiling lighting engineered for precision color mixing, dynamic effects, and full-spectrum white control. Powered by UCS512C2 IC technology, enabling 16 million colors, 256-level brightness control, and seamless transitions between dynamic RGB effects and tunable white 2800K to 10000K.

ICEIL DMX RGBWW PIXEL CHAIN BLOCK
Specifications - DMX RGBWW Pixel
LED Specifications
Chip Brand Epistar SMD 3535 (RGBWW)
Color Output RGB Dynamic Color Effects
Dedicated White (W) and Warm White (WW) Channels
RGB + CCT Control
16 Million Color Combinations
256 Levels of Brightness Control
CCT Range 2800K – 10000K
CRI ≥ 80
IC Technology UCS512C2 DMX Integrated Control IC
PCB Type High-performance Aluminium Rigid PCB
LEDs per Block 12 LEDs per module
Lens PMMA Lens, Ultra-wide 160° beam angle
Light Distribution Optimized LED pitch for uniform, shadow-free and dot-free illumination
Power Consumption per Sq.ft 6 Watts
Lighting Compatibility Suitable for both translucent and printed stretch membrane systems
Mounting & Configuration
Mounting System Aluminium rigid PCB ensuring excellent thermal dissipation and long-term mechanical stability
Connection System JS6 Serial LED Connecting System for stable DMX signal transmission and scalable installations
Application Scope Architectural feature stretch ceilings
Large-scale commercial and public spaces
Experiential, entertainment, and dynamic lighting environments
Dimming & Controls
Dimming Yes (RGB effects, CCT control, and intensity adjustment)
Control Options Arcolis Remote App
DMX Touch Panel
RF Remote Control
Control Protocol DMX512
Power Supply (SMPS) Specification
Input Voltage Range 100–305V AC (Class I)
Surge Protection 6KV / 4KV
Operating Temperature -20°C to +45°C
Operating Humidity 20% – 90% RH
Body Construction Metal Enclosure, IP67 Rated
Power Factor (PFC) ≥ 0.98
Warranty
LED Modules, Controller & Power Supply 5 Years or 50,000 Hours (whichever occurs first)

7. CLOUD RGB PIXEL CHAIN BLOCK

Iceil™ RGBIC 24V Moving Cloud Rigid Bar LED System

DMX-controlled RGBIC architectural lighting engineered for kinetic motion effects, pixel-level control, and immersive stretch ceiling environments. Powered by SM16703 IC technology delivering dynamic motion-based lighting effects such as moving clouds, flowing gradients, and animated sequences with individual LED addressability.

ICEIL CLOUD RGB PIXEL CHAIN BLOCK
Specifications - Cloud RGB Pixel Chain Block
LED Specifications
Chip Brand Epistar SMD 5050 RGB
Color Output RGBIC (Individually Addressable RGB)
16 Million Colors
256 Levels of Brightness Control
IC Technology SM16703 Integrated Pixel Control IC (IC per LED)
PCB Type High-performance Aluminium Rigid PCB
LED Density 24 LEDs per meter
Pixel Control Full pixel-level addressability for precise animation control
Power Consumption per Sq.ft 10 Watts
Lighting Effects Capability Moving cloud effects
Rainbow flow sequences
Theater chase patterns
Meteor trail animations
Water ripple effects
Scanning light effects
Running horse animations
Mounting & Configuration
Mounting System Aluminium rigid PCB ensuring superior thermal dissipation and long-term mechanical stability
Form Factor Rigid bar profile suitable for linear stretch ceiling and architectural feature integration
Application Scope Dynamic stretch ceiling installations
Architectural feature lighting
Experiential, entertainment, and immersive environments
Dimming & Controls
Dimming Yes (pixel-level RGB and intensity control)
Control Protocols DMX512
Art-Net
Control Platforms & Interfaces Android App
Touch Scene Panel
DMX Lighting Software
Windows-based control systems
Controller Type
Controller Type Iceil™ DMX RGBIC Pixel Controller
Power Supply (SMPS) Specification
Input Voltage Range 100–305V AC (Class I)
Surge Protection 6KV / 4KV
Operating Temperature -20°C to +45°C
Operating Humidity 20% – 90% RH
Body Construction Metal Enclosure, IP67 Rated
Power Factor (PFC) ≥ 0.98
Warranty
LED Rigid Bars, Controller & Power Supply 5 Years or 50,000 Hours (whichever occurs first)
Reach Us Out!
logo
  • Home
  • Who We Are
  • Our Projects
  • Our Products
  • Partner With Us
  • Blogs
  • Contact Us
  • Downloads
  • Video Gallery
  • Metal Perforated
  • Signage Lightbox

Stretch Ceilings

  • Translucent
  • Printed
  • RGB Dynamic
  • 3D Forms
  • Acoustic
  • Lacquer
  • Printed Lacquer
  • Art Perforated
  • Mirror
  • Moving
  • Custom Wall Graphics

Architectural Customised Lighting

  • Geometrical Shape Lighting
  • Iceil ARC / WAVE Linear Lighting
  • Iceil Surface / Suspended Linear Lighting
  • Iceil Curved Recessed Linear Lighting
  • Iceil Outward / Inward / Downward Linear Lighting

Architect Area & Techinical Infos

  • Stretch Ceiling Advantages
  • Installation Pre-Conditions
  • Installation Steps
  • Boxing
  • Diffuser Specifications
  • LED Solutions
  • Profile Section
  • Drivers & Controllers
  • Colours and Finishes
  • Complex Projects
  • Certifications
  • Product Warranty
  • BOQ Request
certificate
certificate

Click here to leave us a review on Google!

© Iceil Stretch Ceilings Developed by Black I Technologies & Solutions
